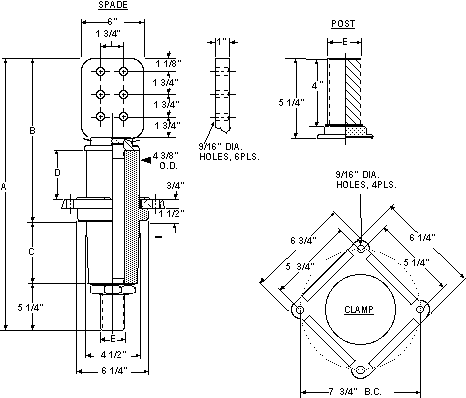

1.2 and 2.5 kv class high current bushing assemblies

THE RATINGS ARE GIVEN FOR THESE BUSHING ASSEMBLIES ARE BASED ON USE IN AN OUTDOOR LIQUID FILLED TRANSFORMER WITH LOWER END OF BUSHING SUBMERGED UNDER OIL

PART NO. KV CLASS BIL AMPS CONNECTOR
TYPE A B C D E

62-6080 1.2 45 3000 SPADE 20-1/4" 12-1/2"
2-1/2"
2-1/2" 2-1/2"-12

62-6085 1.2 45 4000 SPADE 20-1/4" 12-1/2" 2-1/2" 2-1/2" 3"-12

62-6090 2.5 60 3000 SPADE 22" 13-1/2" 3-5/8" 3-7/8" 2-1/2"-12

62-6095 2.5 60 4000 SPADE 22" 13-1/2" 3-5/8" 3-7/8" 3"-12

62-6100 1.2 45 3000 POST 18" 10-1/4" 2-1/2" 2-1/2" 2-1/2"-12

62-6105 1.2 45 4000 POST 18" 10-1/4" 2-1/2" 2-1/2" 3"-12

62-6110 2.5 60 3000 POST 19-3/4" 11-1/4" 3-5/8" 3-7/8" 2-1/2"-12

62-6115 2.5 60 4000 POST 19-3/4" 11-1/4" 3-5/8" 3-7/8" 3"-12
