Federal Pacific Page 3

O.E.M. TYPE	DESCRIPTION		NMC P/N	O.E.M. NO.
FEDERAL PACIFIC JCE 600A/1200A	JCE-22, JE-42 OCB 600AMP
FEDERAL PACIFIC JCE 600A/1200A	JCE-37-E STA MAIN CONTACT		2111020020	EZ00104210BB

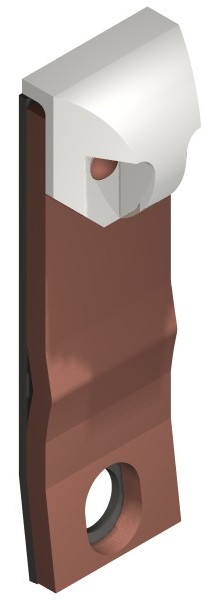

Fig. 1	JCE-42/AF-36-39 STA MAIN CONTACT	FIG. 1	2111020040
	STA MAIN ARC CONTACT		2111020045
	STA ARC CONTACT		2111020120	E-20539
Fig. 2	CONTACT Z-BLADE, 6-7/16 LEG		2111910000	FA-2172-C
	CONTACT Z-BLADE, 5-9/16 LEG		2111910010	EZ-1549-A

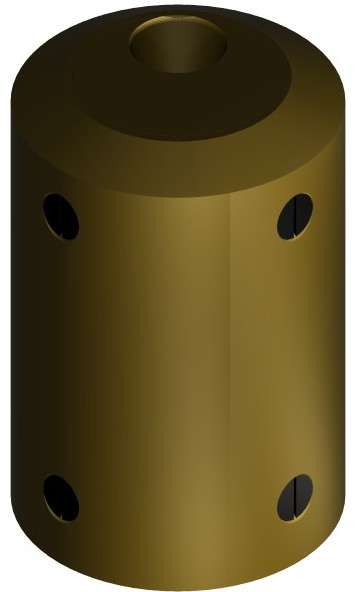

	BAFFLE EXPULSION CHAMBER ASM	FIG. 2	2111420000	DWG #5766
Fig. 3	MAIN MOV BLADE		2311910000	RHE-78-138


Fig. 4


Fig. 5	JCE-22, JE-42 OCB 1200 AMP
	STA ARCING SHOW CONTACT		2111020015	FA000201700A

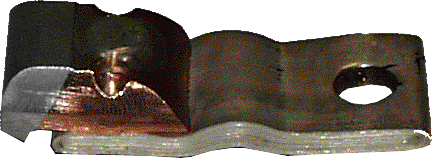

	STA ARC & MAIN FGR W/BUTTON	FIG. 3	2111020125	E-20538

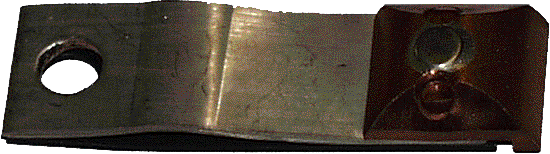

Fig. 6	STA MAIN FGR ASM W/BUTTON	FIG. 4	2111022000

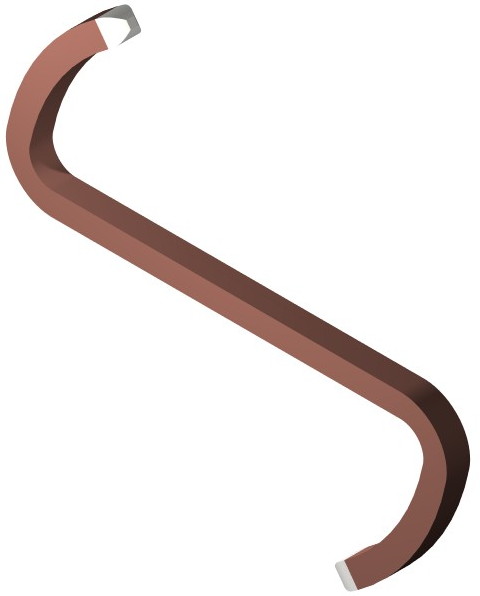

	CONTACT Z-BLADE, 6-7/16 PLATED	FIG. 5	2111910100	FA-2172-C

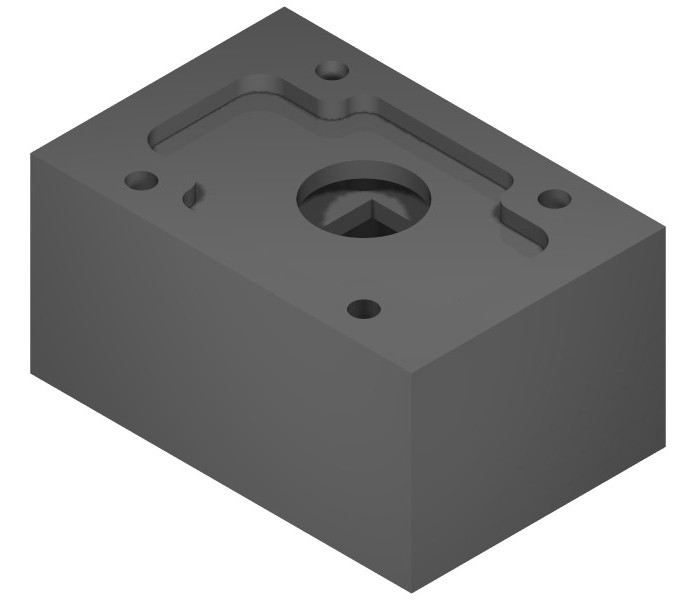

	BAFFLE EXPULSION CHAMBER	FIG. 6	2111421010	N 485
	ARCING BLADE FOR CJ INTERRUPTER		2401010005
