O.E.M. TYPE

DESCRIPTION



NMC P/N

O.E.M. NO.

ALLIS CHALMERS
TLH-20, 21 34/12 KV

 TLH-21 MAIN & HUB FINGER SUPPORT   1111310010 8078

TLH-21 REVERSE SHAFT BEARING



1111220013

8071

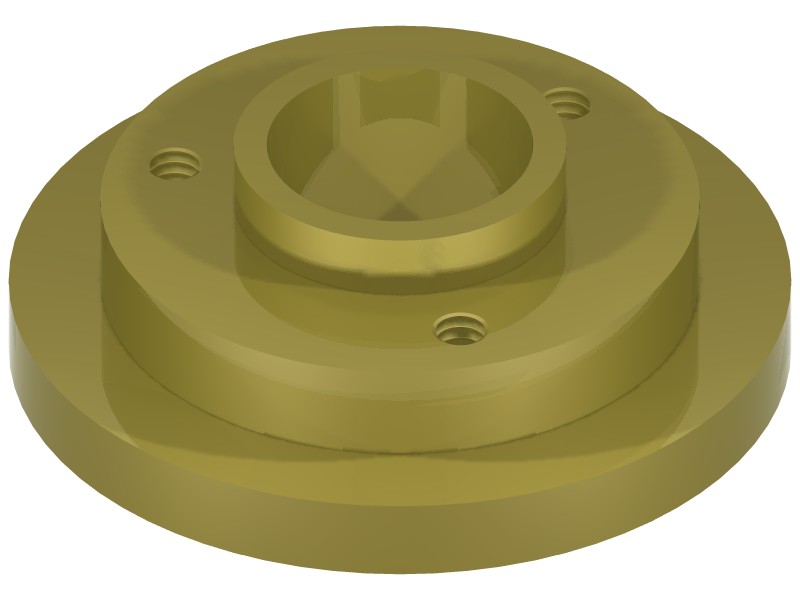

TLH-21 REVERSE SHAFT BEARING W/THDS



1111220014

 8071

1111220021
Fig. 1

TLH-20,21 BEARING ASSEMBLY

 Fig. 1

1111220021

 7062, 7071

TLH-20,21 MAIN & COL FGR SUPPORT,2 SETS COLLECTOR FINGERS



1111520027

7058, 8058

TLH-20,21 SELECTOR STATIONARY MOUNT ASSEMBLY

1111550007

7062, 8062

TLH-20,21 NEUTRAL STATIONARY MOUNT ASSEMBLY

   1111550017



TLH-21 MOTOR

23190-N

8024

TLH-21 MOTOR POSITION SPROCKET ASSEMBLY

1111720015

TLH-21 MICRO LIMIT SWITCH



23192

01-150-382-006

ALLIS CHALMERS
TLF, TLH-10

TLF LTC







FOR ADDITIONAL PARTS FOR TLF, SEE KIT PRINT# 1211200000, 121120000K AND 1211300000



1211410002
Fig. 2		 STANDARD REVERSE REMANUFACTURED TAP   1212400000
ISOLATED REVERSE REMANUFACTURED TAP   1212400002
TLF LATCH SPRING ASSEMBLY   1211340012

MAIN MOVABLE DRIVE ARM

 Fig. 2

1211410002

3002

PHASE PANEL BOARD



1211440000

3001

REVERSE SWITCH DRIVE ARM



1211440005

3017


TLH-10 LTC (LOW AMP)








FOR ADDITIONAL PARTS FOR TLH-10, SEE KIT PRINT #1311020000
  REMANUFACTURED STANDARD REVERSE TAP, 34.5 KV   1312345000
  REMANUFACTURED ISOLATED REVERSE TAP, 34.5 KV   1312345100



REVERSE SWITCH DRIVE ARM, 34.5 KV



1311440000

6075

  Fig. 3

REVERSE SWITCH DRIVE ARM PLATE, 34.5 KV



1311441000


STANDARD REVERSE SWITCH ARM, 34.5 KV Fig. 3 1311020005

STANDARD TAP PHASE BOARD (34.5KV)



1311041000


ISOLATED REVERSE TAP PHASE BOARD (34.5KV), OLD STYLE 1311042000

* LEAD SET (34.5KV)



1311046000


  DRIVE SPRING ASSEMBLY   1311330010


TLH-10 LTC (HIGH AMP)








70 KV REMANUFACTURED  LTC W/ ISOLATED REVERSE SWITCH



1312420000





70 KV REMANUFACTURED LTC W/ STANDARD REVERSE SWITCH



1312430000





ISOLATED TAP PHASE BOARD (70KV)



1311040000




SELECTOR SWITCH DRIVE ARM, 70 KV



1311442000

6038
  ISOLATED REVERSE MOVABLE SUPPORT, 70 KV   1311220006
   STANDARD REVERSE MOVABLE CONTACT ARM, 70 KV   1311220007
  DRIVE SPRING ASSEMBLY   1311330010

NMC-Design 1
