MATERIAL

PART NO.

# BRAIDS
IN FERRULE

AMPERE RATING

CIRCULAR MILS
N BRAID (APPROX)

A

B

21011

71-0077
71-0154
71-0231
71-0309

1
2
3
4

190
340
470
600

77,000
154,500
231,500
309,000

1 5/16"
1 5/16"
1 5/16"
1 5/16"

1/4"
1/4"
1/4"
5/16"

21098

72-0154
72-0309
72-0463
72-0617

1
2
3
4

330
530
700
850

154,500
309,000
463,000
617,500

1 1/2"
1 5/8"
1 5/8"
1 5/8"

1/4"
1/4"
5/16"
3/8"

21097

73-0231
73-0463
73-0694
73-0926

1
2
3
4

360
600
820
1000

231,500
463,000
694,500
926,000

1 3/16"
1 3/16"
1 1/2"
1 5/8"

1/4"
7/16"
1/2"
5/16"

21100

74-0309
74-0617
74-0926
74-1235

1
2
3
4

415
700
960
1200

309,000
617,500
926,000
1,235,000

1 1/2"
1 1/2"
1 5/8"
1 5/8"

1/4"
1/2"
5/8"
7/8"

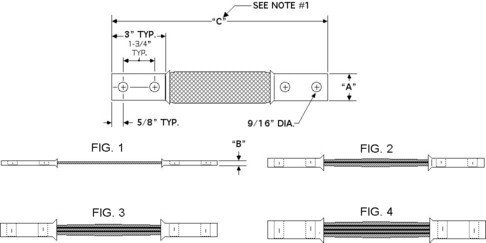

NOTES:
1. "C" LENGTH TO BE SPECIFIED BY CUSTOMER
2. "A" & "B" DIMENSIONS ARE APPROXIMATE UNLESS SPECIFIED BY CUSTOMER.
