General Electric- ML-32, MLT-32 Page 5

O.E.M. TYPE	DESCRIPTION		NMC P/N	O.E.M. NO.
GENERAL ELECTRIC	G.E. ML-32, MLT-32
Fig. 1	ML32 REVERSE MOVABLE ASM		3211210020	R2028

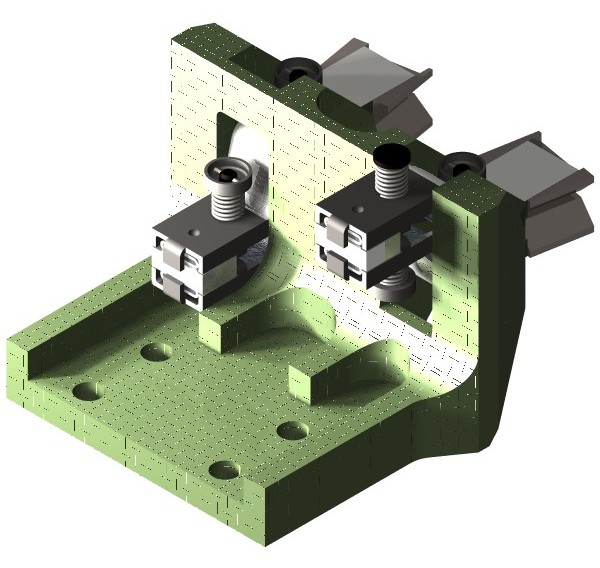

	MLT-32 MOVABLE FGR. ASSY W/ CARRIER WITH 2 PIN FINGER ASM	FIG. 1	3211310024
	G.E. LRT-38/48
	FOR ADDITIONAL PARTS FOR LRT 38/48, SEE KIT PRINT #3211380000
	LRT 38,48 SELECTOR MOVABLE W/CARRIER & 1 PIN FINGER ASM		3211380024
	LRT 38/48 INNER COLLECTOR RING		3211380031
	LRT 38/48 OUTER COLLECTOR RING		3211380036
	G.E. LRT-81
	FOR ADDITIONAL PARTS FOR LRT-81, SEE KIT PRINT #3911000000
	TRANSFER SWITCH ARCING CONTACT W/ LONG S/S STUD		3911010152	359A422 G2
	TRANSFER SWITCH ARCING CONTACT W/ SHORT S/S STUD		3911010151	359A422 G1
GENERAL ELECTRIC	VOLTAGE REGULATOR

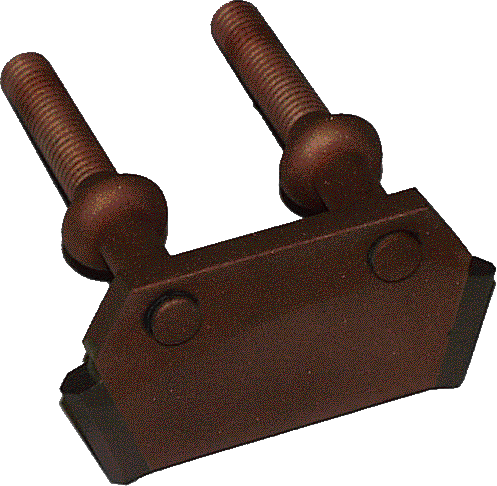

Fig. 2	STATIONARY MAIN CONTACT W/STUDS (MID & LOW CURRENT)	FIG. 2	3211020015	R2033 3923A412AAG16
	HIGH VOLTAGE REGULATOR STATIONARY VR-1 CONTACT		3211020115
	NEUTRAL MID CURRENT STATIONARY		3211021011
	NEUTRAL STAT. CONTACT		3211021023
	REV. STAT. CONTACT R/H		3211021024	3901A373AB 27

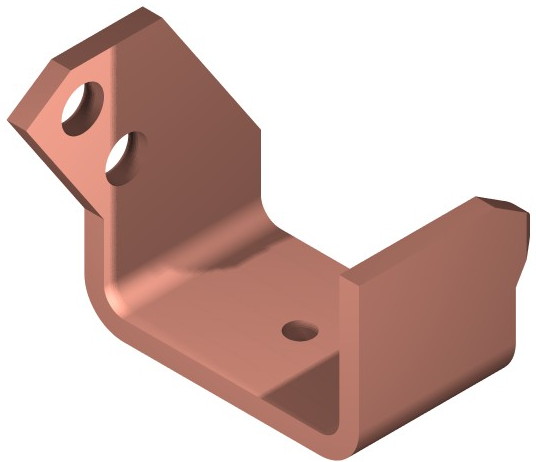

	REV. STAT. CONTACT L/H	FIG. 3	3211021025	3901A373AB 28
	VMLT-32
Fig. 3	BY-PASS SWITCH L/H FGR ASM		321121V701

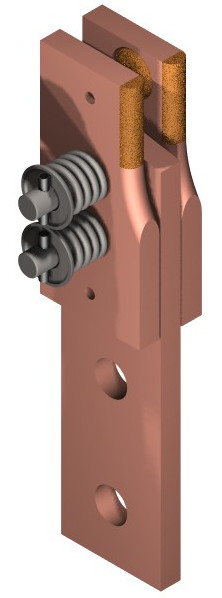

	BY-PASS SWITCH R/H FGR ASM	FIG. 4	321121V702
	BY-BASS SWITCH "R" FGR ASM		321121V705
	BY-PASS SWITCH "S" MOV FGR ASM		321121V706
	BY-PASS SWITCH LH FINGER ASSEMBLY		321121V711
	BYPASS SWITCH RH FINGER ASSEMBLY		321121V712
Fig. 4	COLLECTOR RING CONTACT		321121V401
	SELECTOR FGR "A" CARRIER ASM		321121V403
	SELECTOR STATIONARY CONTACT		321121V409
	SELECTOR FGR "B" CARRIER ASM		321121V423
	4 FINGER ASSEMBLY WITH BOARD		321121V501
	GROUNDING SWITCH
	GROUND SWITCH ASSEMBLY		3951010000	600D704 G1
	GROUND SWITCH ASSEMBLY W/ NEW O-RING HANDLE DESIGN		3951040000	396C755
	BAYONET ADAPTER		3951030010	20556B200 P1
