General Electric- FK, FKA 34.5-72 KV Page 6

NORMANDY MACHINE CO. INC.
250 INDUSTRIAL DR., TROY, MISSOURI 63379
PHONE (636) 528-8913 (800) 526-6740
FAX (636) 528-8937 sales@normandymachine.com

O.E.M. TYPE

DESCRIPTION

NMC P/N

O.E.M. NO.

GENERAL ELECTRIC
FK, FKA 34.5-72KV O.C.B.

* UPPER ADAPTER 1.500-12NC 2A

FIG. 1

3421523450

* UPPER ADAPTER 1.250-12NC 2A

3421523451

3421523450
Fig. 1

* UPPER ADAPTER 1.375-12NC 2A

3421523452

* UPPER ADAPTER 1.125-12NC 2A

3421523454

* UPPER & LOWER ADAPTER ASSEMBLY

3421523455

LOWER ADAPTER

FIG. 2

3421523456

* INTERRUPTER ASSEMBLY W/O UPPER ADAPTER

3421523510

3421523456 Fig. 2

ASSEMBLY FIXTURE FOR 8 PC FGR CLUSTER

FIG. 3

3421530000

ASSEMBLY FIXTURE FOR 6 PC FGR CLUSTER

3421540000

* STAT CLUSTER ARCING FGR 3/4" W/ NIPPLE

FIG. 4

3421220040

103A6953G001

* STAT CLUSTER MAIN FGR 3/4" W/O NIPPLE

FIG. 5

3421220050

103A6953G002

* STAT CLUSTER 6-FINGER ASSEMBLY 1" (BEFORE 1965)

3421220200

0195X0154703-G2

3421530000 Fig. 3

* FK 46-1500 STAT CLUSTER ARC FGR W/ NIPPLE 1"

3421220113

398-A-752-G1

* STAT CLUSTER MAIN FGR W/O NIPPLE 1"

3521220114

398-A-752-G2

* FK 69-3500-8 BAFFLE ASSEMBLY

3421426900

0842C0550701

* FK 38-3600-2Y LIFT ROD ASSEMBLY

3421443800

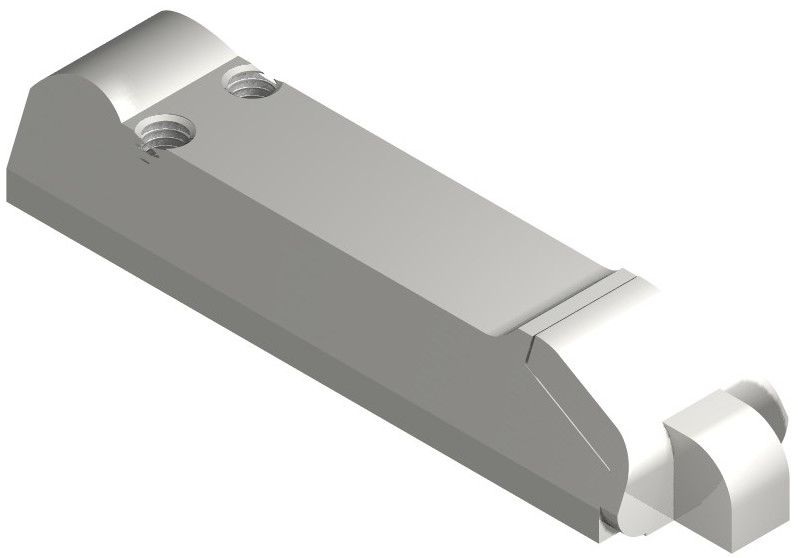

3421220040
Fig. 4

FK 69KV GUIDE ROD ASSEMBLY

3421446900

* FK 69KV UPPER BAFFLE ASSEMBLY

3451426900

34.5 - 72 KV BAFFLE STACK ASSY

3421423450

STATIONARY CLUSTER ASSY

3421220000

G.E. FK 34.5-72KV MOVABLE RODS

LENGTH	PART NO.	O.E.M. NO
12-3/8	3421210300	0269A2229701
12-5/8	3421210301	0103A3849003 0103A6272-P9
13"	3421210302	0269A2219711
15"	3421210304	0269A2219713
13-3/4	3421210305	0269A2219714
15-3/16	3421210306
13-1/2	3421210307	158A8776P001
14-1/4	3421210309
13-1/2	3421210409	387A0331G002
13-1/4	3421413805	0158A777P002 0158A776P002
13-5/16	3421413806	0269A2229702

FK 34.5-15000-1

FK 38-36000 34KV

FK 34.5-15000-2R 34.5KV
FK 38-36000-2Y 38KV

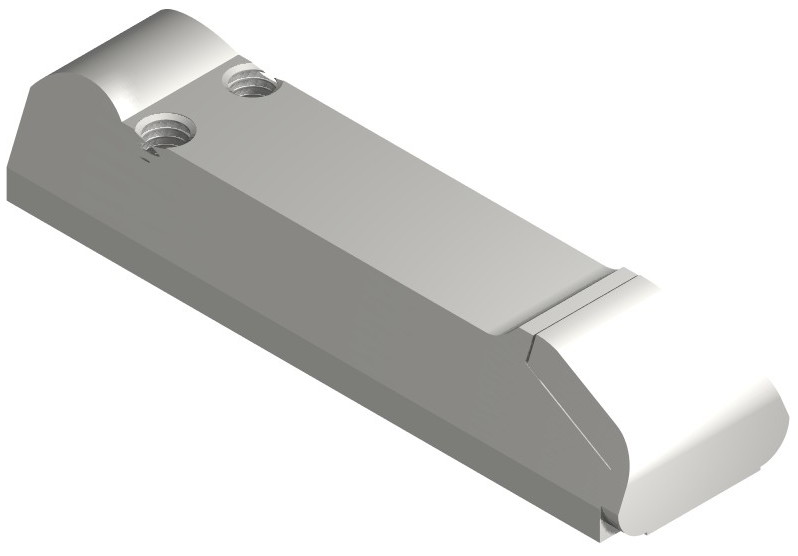

3421220050
Fig. 5
